AT5K Repair and Balun Replacement Images - Toad Harbor Net

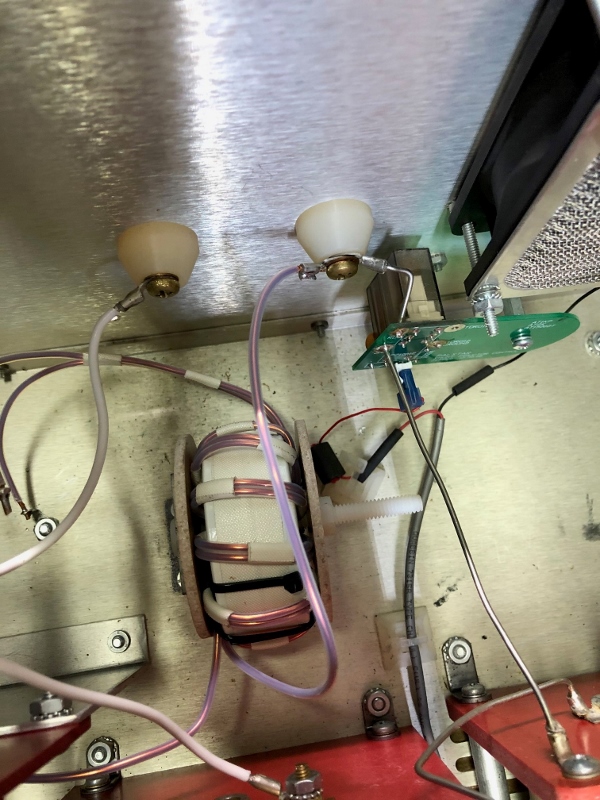

Stock Balun and Mis-Wired Relay Board



Insertion of 14T 4-Core K-Type Balun for initial testing. Note the Mis-Wired Relay Board is still in circuit. This was subsequently corrected with the Vacuum Relay..







Output wire passing close to edge of aluminum support. Wire was sleeved and extended to provide clearance.



Original Relay Board with factory wiring error. This was replaced with a Vacuum Relay.
